【Product Introduction】King of Op Amps — AiP5532

Introduction
Highly popular in the speaker market, the AiP5532 is the preferred choice for mid-to-high-end audio amplification systems and has earned the reputation as the “King of Op Amps.” Compared with other audio op amps on the market, it delivers crystal-clear tonality, perfect balance across high, mid, and low frequency ranges, and excellent resolution. Introducing the AiP5532 — a dual-channel, high-performance, low-noise operational amplifier circuit from Wuxi I-CORE Electronics!

The AiP5532 features low noise, high gain, high slew rate, and high output drive capability. It can operate from either a single supply or dual supplies. In addition to audio processing, signal amplification, and filtering systems, it is also suitable for applications in instrumentation, industrial control, etc.

Key Features

Operating range of power supply voltage
Single power supply: 5V to 36V
Dual power supply: ±2.5V to ±18V
Unit gain bandwidth: 7MHz (typical)
Slew rate: 6V/us (typical)
Input offset voltage: 0.5mV (typical)
Input offset current: 10nA (typical)
Packaging form: DIP8/SOP8

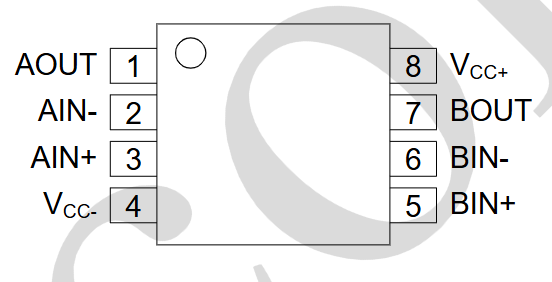

Pin Configuration Diagram

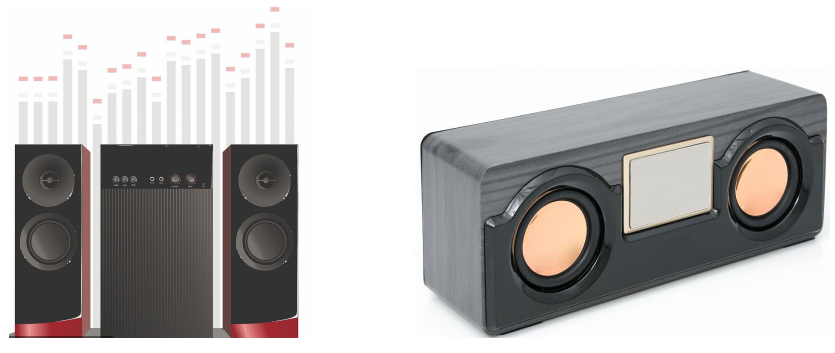

Applications

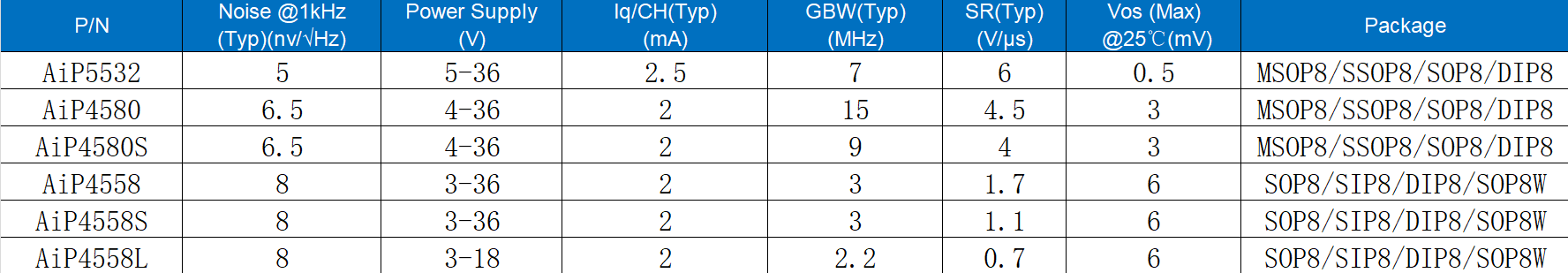

Wuxi I-CORE Electronics Audio-Specific Operational Amplifier Product Line
